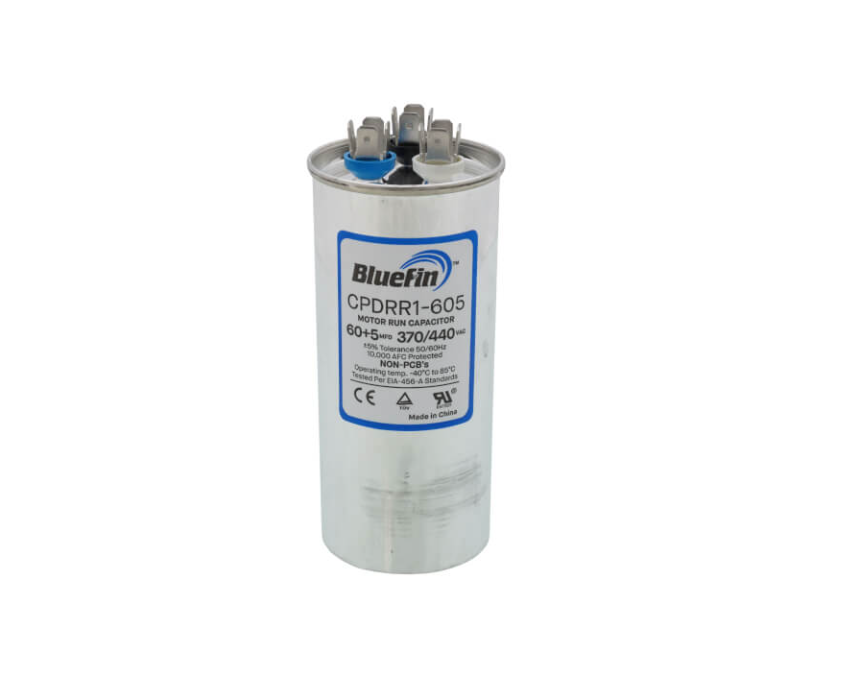

60/5 MFD Round Dual Motor Run Capacitor (440/370V)

• Self Healing: the metallized polypropylene film can repair itself and continue functioning if small faults occur
• Oil Filled: gives the capacitor higher capacitance and a longer service life
• Wide Operating Range: the 370-440 VAC voltage range makes the capacitor more versatile and suitable for use in air conditioning and heating systems
• Metal Case: protects the capacitor from moisture and oil
• Meets EIA 456 Specifications: for metallized film dielectric capacitors for alternating current applications
• UL Listed: This product has undergone rigorous testing and inspections to ensure that it's safe and reliable
• RoHs Compliant: approved for use on commercial and residential jobs

Operating Temperature: -40F to 185F

Voltage Range: 370-440VAC

Capacitance Range: 3-120UF

Capacitance Tolerance: 5%

Operating Frequency: 50-60Hz

Case Size: Round

Termination: 1/4" Quick Disconnect Terminals

Performance Specifications: Meets requirements of EIA-456, UL310, UL810, C22.2 No190, & RoHs
