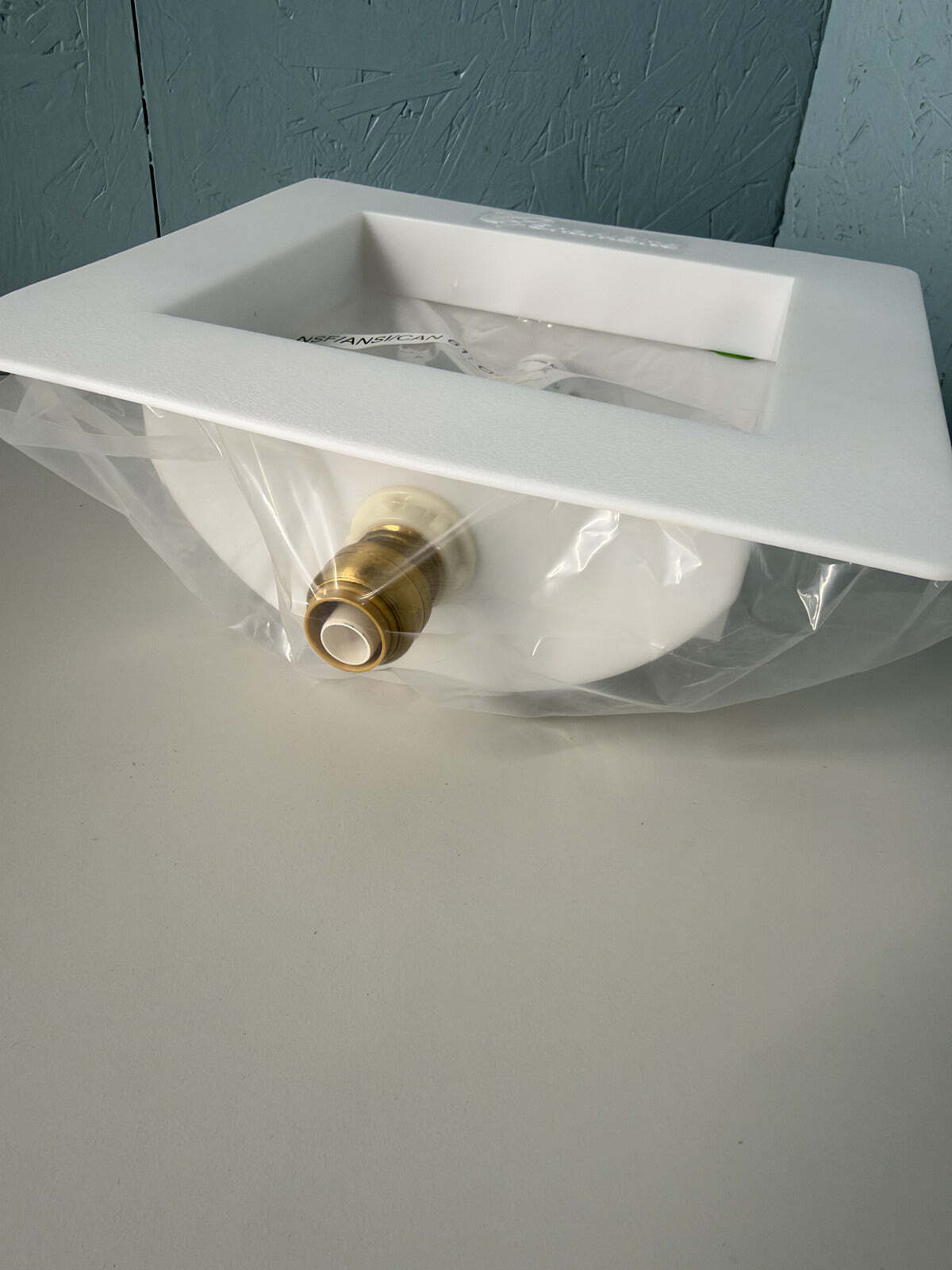

Apollo 1/2" Pex Expansion A Ice Maker Outlet Box

The Apollo ExpansionPEX Ice Maker Outlet Box includes a 1/2 in. Brass PEX-A barb ice maker valve and is simple to install. It provides flow control through an anti-stick and smooth operating quarter-turn handle. Ideal for installations of ice makers, refrigerators and filtered water dispensers. Apollo ExpansionPEX barb fittings are a key component of the most economical potable water piping systems. Apollo ExpansionPEX barb connections must be secured into place Apollo ExpansionPEX sleeves or comparable expansion-type sleeve or ring (all sold separately). The Apollo ExpansionPEX system is a comprehensive piping system comprised of lead free brass fittings, poly alloy fittings, manifolds, valves, fasteners, tools and tubing designed for implementation in water delivery systems, simple or complex. A cold-expansion tool (sold separately) is required for installation.

Highlights
Valve constructed of lead free dezincification resistant (DZR) brass for superior reliability and strength
Designed exclusively for use within type A PEX piping systems
1/4 in. O.D. male compression outlet
Box design allows for left or right stud mounting
Snap in place faceplate allows for up to 3/4 in. drywall
Ideal for installations of ice makers, refrigerators and filtered water dispensers
Larger internal diameter of Apollo ExpansionPEX fittings results in a 25% greater flow rate within the system
Meets or exceeds ASTM F1960 standard
Meets UPC, IPC, and cUPC standard requirements
Must secured in place using Apollo ExpansionPEX sleeves or other PEX-A expansion sleeves/rings (all sold separately)
NSF listed
Barb x barb connection for PEX-A plumbing systems
Go/no-go gauges are never required
To ensure secure connections every time, fittings cannot be dry fit
Maximum working pressure of 200 psi and maximum temperature of 200 degree F
